ESDI

ESDI stands for "ESilva Desktop Interface" iirc, or "rAcElaBs aT hOmE"

This tool collects data from popular racing simulators (for now), to pass it to peripherals (or a peripheral, only made one so far). This is the currently available peripheral: CDashDisplay.

If anyone finds this project useful for anything at all it would be pretty cool. My main goal is to learn and have some fun.

Usage

To launch the software, compile (TBD) or just run it with: go run . tui

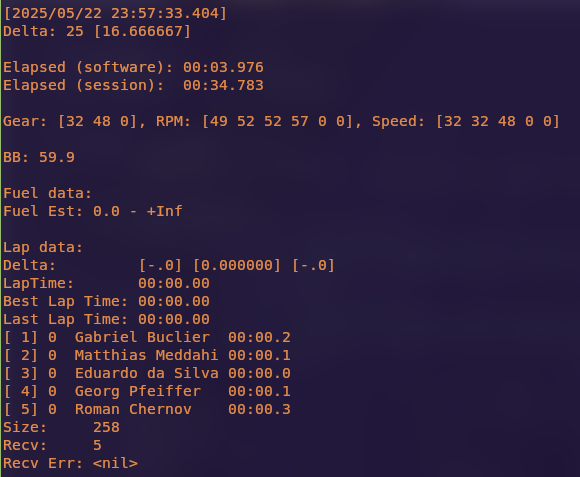

You should see something like this: example output in the terminal

The current behaviour is very opaque.

What is happening in the background is the software looks up for the configured devices and for available telemetry providers.

Once it finds a device, in this case the CDashDisplay, it will try to configure it against the available telemetry provider.

After configuring it it will automatically start streaming data from the telemetry provider into the CDashDisplay.

Using the arrows you can navigate to the stream item on the list and then go to the update button and press s to see the output on the terminal.

I upgraded the backend significantly and there's plenty of work to be done on the frontend. I know its quite bad right now.

Compatibility:

Games implemented so far:

Peripherals:

Development

Mockservers

I'm using a mockserver developed by myself that pretty much mimicks the telemetry output from the actual simulators. It uses the SDKs I developed to do so with the added bonus of being able to run the project on Linux and mainly develop it.

Just go to TelemetryMockserver on GitHub and follow the instructions there.

Troubleshooting

Can't see BeamNG data coming through

Use, for example, tcpdump -i any udp port <port> -X to check if any data is available.

Debugging

Freezes:

Using delve:

  • Launch Terminal1 with dlv debug . --headless --listen=:2345 -- tui
  • Launch Terminal2 and connect to with with dlv connect :2345
  • Type continue onto Terminal2 and go to Terminal1 to use the application normally until it hangs.
  • Go back to Terminal2 to and do a Ctrl+c to capture the state and then check what went wrong by looking at the goroutines for example.

pprof:

  • go tool pprof http://localhost:8001/debug/pprof/mutex
    • type top to view the summary
    • type web to view a graph version

Shameless begging

Hey, doesn't hurt to try, its free either way: Buy me a coffee!
